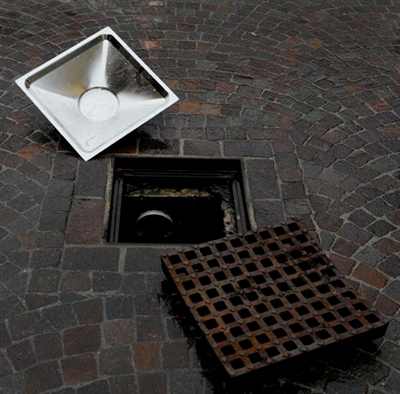

Stainless Steel floor drain, equipped with grid drain or insert tileable. available in two versions and in different lengths.
The standard version with a total height of 105 mm floor level. - 50 mm water column. with discharge flow rate 30 l / min., conforming to EN274.
The low version with a total height of 85 mm at floor level. - 30 mm water column. with discharge flow rate of 30l / min., conforming to EN274.
The Stainless Steel floor drain has a regulation system to facilitate the positioning on the floor.
For proper installation it is recommended to prepare the substrate with an appropriate waterproof membrane.
The siphon is preassembled, immovable and at 360 ° is fully inspected.
Stainless steel floor drain can be assembled and aligned using the appropriate kit
